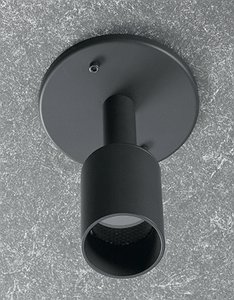

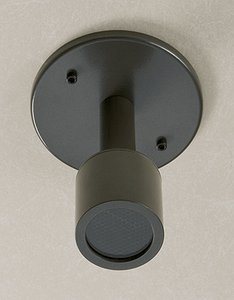

DL1 MR16 / LED Down Light

Material:

Available in machined 6061-T6 aluminum or C36000 brass. All hardware 18-8 stainless steel.

Body:

Machined body and stem (if specified) are permanently attached to canopy using a 304 stainless steel threaded nipple. Molded silicone wire seal prevents water entry around wires.

Cap:

Machined cap locks in place with one set screw and is sealed to the body with a high temperature silicone O-ring. Square caps feature removable and field interchangeable cutoffs. All caps accept up to two internal accessories, held in place by a stainless-steel clip.

Mount Canopy:

Available with the following mount options: MO3 (Machined Round Canopy), MO15 (Machined Square Canopy), and MO12 (Surface Mount Powered Canopy). MO3 & MO15 mount options come mounted to a steel universal mounting ring for ease of mounting and adjustment on an industry standard round junction box. See mount specification sheets for more information. (Mount canopy must be mounted to an appropriate ceiling or junction box, in such a manner that is capable of holding the weight of the fixture. Junction box and hardware not included).

Finish:

TGIC thermo-set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged.

Socket:

GY-6.35 porcelain socket with 600V, 250°C, PTFE coated 18 ga leads (for MR16 Halogen & MR16 LED options).

Lens:

Tempered, clear lens, secured to cap with a high temperature, UV curing, silicone adhesive.

Light Engine:

COB LED: Both COB LED light engine options use industry standard replaceable components for ease of field maintenance and future upgrades and includes features like: field changeable optics (15º, 24º, 36º, 55º, 65º), choice of color temperature (2700K, 3000K, 3500K, 4000K), CRI (80, 90), and an L70 > 40,000 hrs.

Integral Driver COB LED: Includes a field replaceable low voltage driver in three current choices for 400lm, 700lm, or 1000lm nominal light output. Driver features include: 12VAC input (+/-10%), ELV and MLV phase dimming (contact V3 for dimmer compatibility), high power factor (>0.9), and internal protection (short circuit, overload, thermal, auto-reset).

Remote Driver COB LED: Requires 350mA max. Vision3 approved constant current Driver Mount (see specification sheet). Features a nominal light output of 1600lm (with 15W max., 350mA driver mount). Note: see specification sheet of Driver Mount being specified for appropriate driver ratings and inputs.

MR16 Halogen: 12V bi-pin up to 50W (allowable wattage depends on model. See specification sheet). Lamp supplied by others.

Retrofit MR16 LED: 12V 7.5W (600lm) bi-pin retrofit Soraa™ MR16 LED lamp with specially engineered heat sink mount to ensure proper heat transfer to body. Note: Retrofit LED will overheat without supplied heat sink mount.

Certification:

CSA tested & certified to US and Canadian safety standards for wet location use in ceiling mount applications per UL1598 (see specification sheet for limitations and ratings).
