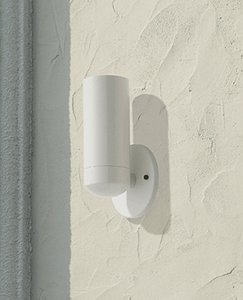

WM2 LED Wall Mount

Light Engine:

Both COB LED light engine options use industry standard replaceable components and quick disconnects for ease of field maintenance and future upgrades, and includes features like: field changeable optics (15º, 24º, 36º, 55º, 65º), choice of color temperature (2700K, 3000K, 3500K, 4000K), CRI (80, 90), and an L70 > 50,000 hrs.

Integral Driver COB LED option: Includes a field replaceable driver module with a 350mA, 15W max. Class 2 driver for features like: 1600lm max. nominal output, 105 lm/W efficacy, 120-277VAC (50/60Hz) input, programmable tri-dimming (TRIAC, ELV, 0-10V) down to 1%, and various protection features (input over current, short circuit and over current, internal over temperature, output open load). Notes: driver can be programmed for dimming profile or lower lumen output. Contact V3 for info. For compatible dimmers, see Compatible Dimmer list.

Remote Driver COB LED option: Requires Vision3 approved constant current remote driver or driver mount (to be specified separately). Includes performance of 1800lm @ 350mA, 2400lm @ 500mA, 3200lm @ 700mA. Note: see specification sheet of driver mount being specified for appropriate driver ratings.

Certification:

CSA tested & certified to US and Canadian safety standards per UL1598 for wet location use in wall mount applications.

Integral Driver COB LED:
Integral driver COB LED available in all configurations.
COB LED:
WM2(A or B) - 700mA max driver current.

Material:

Available in machined 6061-T6 aluminum or C36000 brass with 18-8 stainless steel hardware.

Cap:

Machined cap locks in place with one 18-8 stainless steel set screw and is sealed to the body with a high temperature silicone O-ring. Round C2 & C4 caps have drain holes for water drainage from top of lens. Square caps feature removable and field interchangeable cutoffs with ‘flow through’ design for 360º drainage with no light leak. All caps accept up to two internal accessories, held in place by a stainless steel clip.

Mount Canopy:

Available with the following mount options: MO3 (Machined Round Canopy), MO15 (Machined Square Canopy), and MO12 (Surface Mount Powered Canopy); and may be mounted in the up or down position. Stem is permanently attached to the mount canopy to prevent loosening. MO3 & MO15 mount options come mounted to a steel universal mounting ring for ease of mounting and adjustment on an industry standard round junction box. See mount specification sheets for more information. (Mount canopy must be mounted to an appropriate wall or junction box, in such a manner that is capable of holding the weight of the fixture. Junction box and hardware not included).

Finish:

TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged.
