FL20 1 3/4" Dia. Flood

1 3/4" Dia. Flood

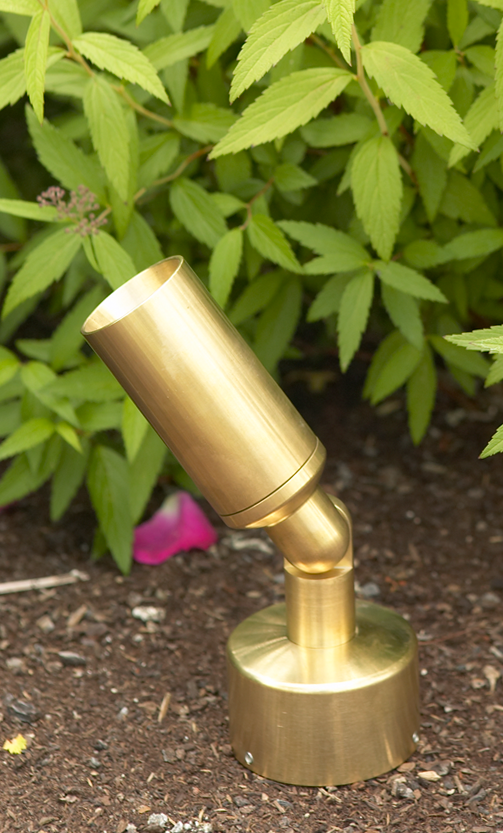

Precision machined aluminum or brass LED lighting fixture available with 12V Integral Driver COB LED light engine. Modular industry standard components allow for simple field replacement and future upgrades. Wet or dry location capable and certified for landscape, wall, and ceiling mount applications, the FL20 Flood / Accent fixture is perfect for all interior, exterior, landscape, residential, commercial, retail, and hospitality uses.

  • Industry standard COB LED components and wiring connectors used to simplify maintenance and future upgrades.
  • Field replaceable optics, COB, and driver.
  • Thick walled cap, optimized high temperature silicone O-ring placement, and molded silicone fixture lead seal to prevent leaking.
  • Patented ‘double-taper’ locking knuckle that locks and stays locked.
  • Tested and certified for wet or dry location use in interior or exterior landscape, wall, or ceiling mount applications.

  • WRITTEN SPECIFICATIONS

    Material

    Available in machined 6061-T6 aluminum or C36000 brass. All hardware 18-8 stainless steel.

    Body

    Machined body with 18-8 stainless steel hardware.

    Knuckle

    Machined mounting knuckle with a 1/2” NPS threaded male fitting allows a full range of mounting positions. Double taper design (U.S. Patent #6,966,679) allows fixture to hold position during aiming and ensures a solid lock when tightened. Integral high temperature silicone O-ring prevents leaking between housing and knuckle. LED models have a molded silicone wire seal to prevent water entry at knuckle. Available Rotate and Lock option (U.S. Patent #7,108,405 & #7,458,552) allows for full 360° horizontal aiming and locking.

    Cap

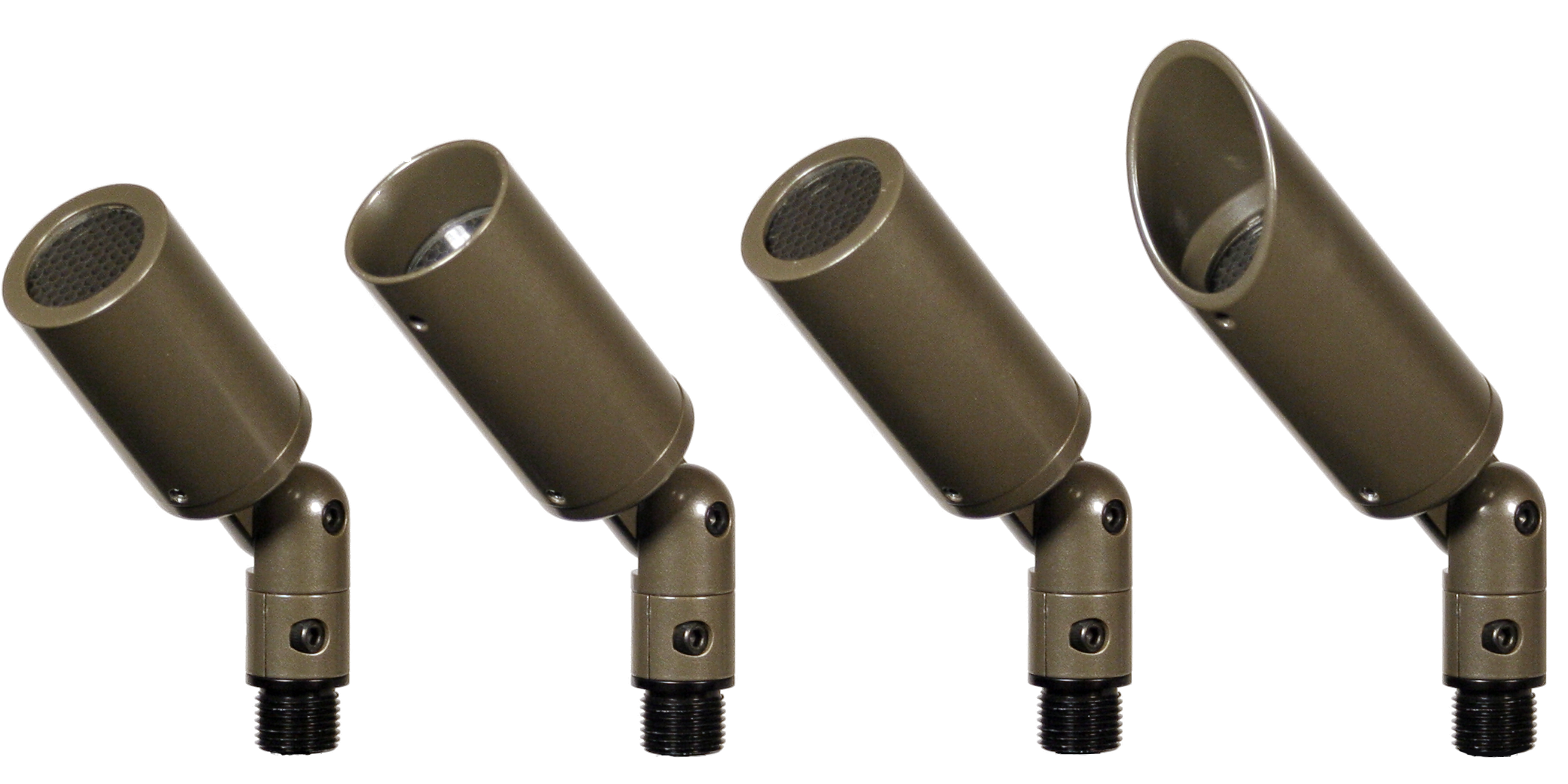

    Machined caps come in four styles, lock in place with one 18-8 stainless steel set screw, and are sealed to the body with a high temperature silicone O-ring. Drain hole in C2 & C4 style caps allows for water drainage from top of lens. All caps accept up to two internal accessories, held in place by a stainless steel clip.

    Finish

    TGIC thermo-set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged.

    Lens

    1/8” thick, tempered, clear lens, secured to cap with a high temperature, UV curing, silicone adhesive.

    Light Engine

    Integral Driver COB LED: COB LED light engine uses industry standard replaceable components for ease of field maintenance and future upgrades and includes features like: field changeable optics (18º, 24º, 36º, 60º), choice of color temperature (2700K, 3000K, 3500K, 4000K), CRI (80, 90), and an L70 > 40,000 hrs. Includes a field replaceable low voltage driver for 400lm nominal light output. Driver features include: 12VAC input (+/- 10%), ELV and MLV phase dimming (contact V3 for dimmer compatibility), high power factor (> 0.9), and internal protection (short circuit, overload, thermal, auto-reset).

    Certification

    CSA tested & certified to US and Canadian safety standards for wet location landscape, wall mount, and ceiling mount use per UL1838 and UL1598.

    All ratings subject to change without notice. See website or contact V3 for most current info.
