MO5

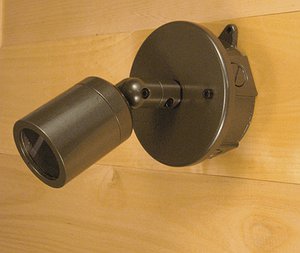

Seamless, cast aluminum junction boxes for surface or recessed mounting of lighting fixtures. Can be used for wall or ceiling mounted accent lighting applications.
- Available in 4/0 round type or single gang rectangular type.
- Weather proof design with 1/2” NPS threaded conduit holes.
- For use with Vision3 Model MO3, MO4, MO6, & MO15 junction box covers.
-
Product Details
WRITTEN SPECIFICATIONS
Construction:
Seamless, cast aluminum, weather-proof junction boxes with reinforced connector outlets. Available in industry standard rectangular single gang box and round outlet box sizes. Rectangular box comes with three 1/2” NPS threaded conduit holes (two conduit plugs included, gasket and mounting screws not supplied). Round box comes with five 1/2” NPS threaded conduit holes (four conduit plugs included, gasket and mounting screws not supplied).
Finish:
Boxes are coated with TGIC thermo set polyester powder coat paint; available in 14 standard colors.
Certification:
UL tested & certified to US and Canadian safety standards for wet location use.
-
Resources
-
Photos
Photos
![]()
-
WRITTEN SPECIFICATIONS
Construction:
Seamless, cast aluminum, weather-proof junction boxes with reinforced connector outlets. Available in industry standard rectangular single gang box and round outlet box sizes. Rectangular box comes with three 1/2” NPS threaded conduit holes (two conduit plugs included, gasket and mounting screws not supplied). Round box comes with five 1/2” NPS threaded conduit holes (four conduit plugs included, gasket and mounting screws not supplied).
Finish:
Boxes are coated with TGIC thermo set polyester powder coat paint; available in 14 standard colors.
Certification:
UL tested & certified to US and Canadian safety standards for wet location use.
-
Downloads
Type Name File size MO5 Specification Sheets 450.1 KB -
