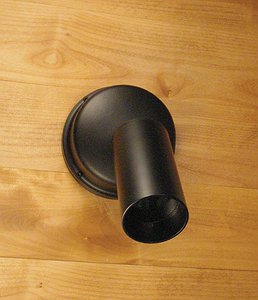

MO13 Surface Mount Powered Canopy

Canopy Base

Canopy Base made from cast 356 aluminum or cast C84400 bronze. Bronze models available with cast or machined finish. Base allows for mounting to the wall as a surface mount box (base mounting hardware not included).

Canopy Cover

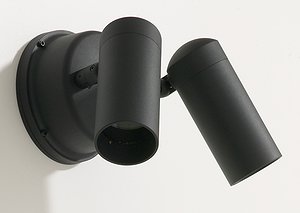

Thick-walled cast 356 aluminum or cast C84400 bronze canopy cover prevents deflection and ‘sag’ of mounted fixtures. Bronze models available with cast or machined finish. Canopy cover available with single or dual fixture mounting holes. Non-threaded mounting hole option allows for versatility, while the threaded mounting hole option can be used for maximum strength (threaded mount hole option requires the use of a fixture with the ‘Rotate and Lock Knuckle’). Canopy cover mounts to the canopy base with four 18-8 stainless steel captive screws, which are retained by the cover. Captive screws prevent loss of screws and provides for safe and easy installation. Captive screw heads are sized the same as the knuckle adjustment screws on Vision3 Lighting flood fixtures, requiring only one tool for installation and adjustment. Alignment pins orient the canopy cover with the canopy base, simplifying installation by ensuring that the cover screws are always lined up properly.

Seals

O-ring groove on canopy cover allows for use of an O-ring to prevent leaking between canopy cover and fixture knuckle. (All Vision3 flood fixtures come with a high temperature, black Viton O-ring on the knuckle for this purpose). High temperature foam silicone gaskets prevent leaking between the canopy cover, canopy base, and mounting surface. (Canopy base gasket may not work properly if mounting surface is too rough).

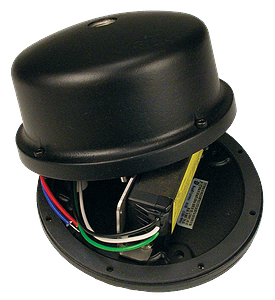

Electrical

No transformer / driver option: no power supply included.

Transformer option: includes a 60W, 12VAC output, electronic transformer with 120VAC input. Suitable for AC LED or halogen loads and ELV dimming capable. Contact Vision3 for LED and dimmer compatibility. Transformer features short-circuit protection.

LED driver option: includes single or dual constant current (350mA, 500mA, or 700mA) LED driver(s) with universal voltage input (120-277VAC) and three dimming options (0-10V, forward-phase, & reverse-phase). Drivers feature over-current, no-load, short-circuit, and over-temperature protection.

Finish

TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Bronze model available in three additional metal finishes: Natural, Polished, and Aged (Cast finish bronze not available in Polished finish).

Certification

CSA tested & certified to US and Canadian safety standards for the following applications:

Wet location wall mount use (UL1598):
MO13(with transformer options) - 150W Max.
MO13(with LED driver options) - 700mA Max. each (single or dual driver)
