MO16 Machined Round Canopy

Machined Round Canopy

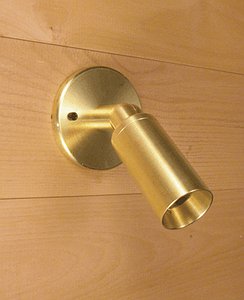

Precision machined round canopy for mounting lighting fixtures on a 3/0 junction box. Can be used for wall or ceiling mounted accent lighting applications.

  • Choice of 1/2” NPS threaded or 7/8” non-threaded mount hole(s).
  • Mount hole has an O-ring groove that, in conjunction with the O-ring supplied with all Vision3 lighting fixtures, creates a water tight fixture mount.

  • WRITTEN SPECIFICATIONS

    Canopy:

    Machined 6061-T6 aluminum, C36000 brass, or 304 stainless steel.

    Fixture Mount:

    Available with 1/2” NPS threaded or Ø7/8” non-threaded fixture mount hole. O-ring groove allows for sealing between fixture and mounting canopy (All Vision3 flood fixtures come with a high temperature, black Viton O-ring on the knuckle for this purpose).

    Mounting:

    Two mounting holes, 2-3/4” on center, for mounting machined round canopy to industry standard round and octagonal 3/0 outlet boxes (hardware and gaskets not supplied).

    Finish:

    TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged. Stainless steel model available in three additional metal finishes: Natural, Polished, and Brushed.
